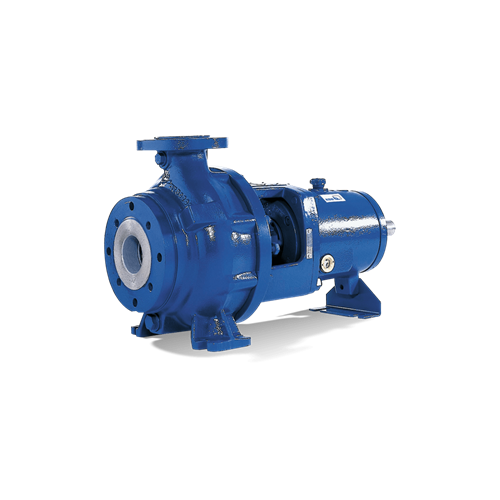

Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller. ATEX-compliant version available.

Main Applications

• Handling clean or aggressive fluids not chemically and mechanically agressive to the pump materials
• Water supply Systems
• Cooling circuits
• Swimming pools

Technical Data

Max. flow rate                                                              15000 m3/h

Max. head                                                                            140 m

Max. allowed working pressure                                      10 bar

Maximum allowable fluid temperature                         140  ํC
