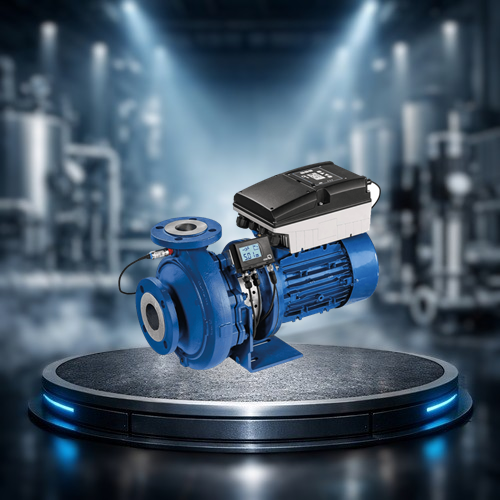

Single-stage volute casing pump in close-coupled design, with ratings to EN 733, with IEC-compatible power drive system comprising PumpDrive 2 and KSB SuPremE® motor or PumpDrive 3 (efficiency class IE4/IE5 to IEC TS 60034-2-3:2016) and motor-integrated frequency inverter. Shaft fitted with a replaceable shaft sleeve in the shaft seal area. Volute casing and casing cover with replaceable casing wear rings. Volute casing with integrally cast pump feet for variants B, C and S. Motor mounting points in accordance with IEC 60072, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. Well ahead of the ErP Directive’s efficiency requirements.

Main Applications

• Handling clean or aggressive fluids not chemically and mechanically agressive to the pump materials
• Water supply Systems
• Cooling circuits
• Swimming pools

Technical Data

Max. flow rate                                                              740 m3/h

Max. head                                                                            160 m

Max. allowed working pressure                                      16 bar

Maximum allowable fluid temperature                         140  ํC
