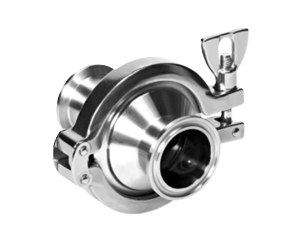

Check valve with clamp end

Description

Check valve with clamp end
Application
◎Check valve is designed to prevent fluid from flowing back and ensure the flow to one way direction.
◎It can be used to reduce the loss of fluid back suction,avoid pipe is shock by liquid
◎It is used in the food-processing, beverages, winery, oil, cosmetics,pharmaceuticals and chemicals industries.

Operating Principles
◎The valve is open when pressure of the fluid exceeds the spring pressure and it is closed when the two pressures are close equal.And stronger counter-pressure also makes the valve closed.

Design and Features
◎Specifications: DN-25/1″ TO DN-100/4″
◎Boby/shaft: AISI 316L/304
◎Spring: AISI 304
◎Seal: EPDM according to FDA177.2600
◎Surface Treatment: Ra ≤0.8 μm
◎Seal:NBR, FPM (Viton) or PTFE. FDA 177.2600(optional)
◎Connections: weld, thread, clamp, DIN, SMS, RJT, IDF, ISO,3A
◎Max. pressure：10 bar
◎Opening pressure：0.3bar(DN-25)0.2bar(DN-32/40)0.1bar(DN-50/100)
◎Working temperature ： -10℃ to 130℃(EPDM)
